AI on Kubernetes: Default Helm Chart Security and Lateral Movement

Subtitle: Security defaults of 15 AI serving, vector database and MCP Helm charts, tested live. Sorami technical report.
Date: 24 September 2026
Author: Sorami Consulting
Suggested citation: Sorami (2026). AI on Kubernetes: Default Helm Chart Security and Lateral Movement. Sorami Technical Report. https://sorami.com.au/research/ai-kubernetes-helm-chart-security/

What this study shows and does not show

Scope, environment and evaluation bounds: - In-cluster threat model: This study evaluates what an attacker who already controls a single pod in the cluster (a "network neighbour") can reach when official Helm charts are installed with out-of-the-box defaults. It does not model an external internet attacker unless a chart explicitly requests public ingress or load balancer exposure by default. - Static vs dynamic coverage: All 15 charts were rendered and statically analysed. Exactly 8 charts successfully started and were probed dynamically in our evaluation environment; the remaining 7 charts did not start due to hardware architecture constraints, missing CRD prerequisites, or storage class requirements, and are evaluated via static analysis only. - Evaluation environment: Dynamic testing was conducted on a single-node local kind cluster running on an Apple Silicon laptop without GPUs or Pod Security Admission, not an enterprise production EKS or GKE cluster. - Defaults vs configuration: Where charts disable or omit authentication, they assume a trusted internal network. In most cases, native authentication, ingress annotations, or sidecars can be configured straightforwardly by operators before production deployment. - Severity ratings: High, Medium and Low designations reflect Sorami's contextual evaluation under the stated in-cluster threat model, not standard CVSS scores.

Key findings

Plain-language summary for operators, security engineers, and platform teams. "Default" means the official chart installed with no changes.

Every number above is computed from results.csv and the files in evidence/, and recorded in evidence/totals.json.

Contents

Abstract

Teams now run model servers, vector databases, LLM gateways and agent tools on Kubernetes, and most start from the vendor's Helm chart. We examined the lateral movement opportunities available to an attacker who has already gained a single-pod foothold inside the cluster. We rendered 15 official charts for popular AI serving, agent, vector database and Kubernetes MCP tools with default values. We scanned the output with Kubescape, Checkov, kube-linter, Trivy and our own checker, and read vendor docs and source for defaults a manifest cannot show. We then installed each chart on a local kind cluster and sent unauthenticated requests to the 8 that started. 10 of 14 tools with an API assume a trusted network and omit native auth by default, and all 6 of those we ran live answered unauthenticated requests. 10 of 15 charts do not enforce non-root execution, and 7 of 15 combine both. 15 of 15 mount a ServiceAccount token by Kubernetes default, 14 of 15 ship no default NetworkPolicy, and 4 of 15 bind a ClusterRole that can read Secrets. In the worst case, an MCP server listed 23 tools to an unauthenticated caller and returned Secret names from other namespaces. In LiteLLM, a migration Job exposes database credentials in plain-text environment variables. Most gaps reflect documented defaults intended for quick evaluation. Operators should configure authentication, network policies and non-root execution before deploying to shared environments.

1. Introduction: Why test default Helm charts for AI?

1.1 Motivation

Self-hosted AI is now a normal part of a Kubernetes platform. A team that wants a private model endpoint installs a model server (Ollama, vLLM, KServe), a gateway or UI in front of it (Open WebUI, an LLM proxy), a vector database for retrieval (Qdrant, Weaviate, Milvus), and more often an agent tool that can act on the cluster itself (an MCP server for Kubernetes). Each of these ships a Helm chart, and the chart is usually the first thing people install.

The chart's default values decide the first security posture. Many operators never change values they do not understand, and demo clusters tend to become shared clusters. Two public incidents show what happens when AI services run with open defaults on a reachable network. In ShadowRay, Oligo reported thousands of internet-exposed Ray clusters compromised through Ray's unauthenticated Jobs API [11], which the vendor treats as expected behaviour and which NVD records as disputed CVE-2023-48022 [12]. Separate internet scans found over 1,000 exposed Ollama servers each, in 2024 [13] and 2025 [14]. Those studies looked from the internet inward. This report looks at the other common case: an attacker who is already inside the cluster, for example through one compromised pod.

1.2 Research questions

1.3 Contributions

  1. A matrix of 12 security checks across 15 official charts, pinned to versions pulled on 24 September 2026, with a file and line reference for every cell (section 6.1, results.csv).
  2. Live confirmation on a local cluster of auth, runtime user and effective RBAC for the 8 charts that started, with full request and response logs (sections 6.3 to 6.5).
  3. A comparison of four scanners against the same renders, including a case (RayCluster) where all four report nothing useful (section 6.2).
  4. Thirteen findings with severity, evidence, impact and a values file fix (section 7).
  5. A checker for AI-specific default checks that reads custom resources such as RayCluster, which generic scanners skip.

Kubernetes defaults. A pod runs as whatever user its image specifies, often root, unless the pod spec sets runAsNonRoot or runAsUser. Each pod mounts a token for its ServiceAccount unless automountServiceAccountToken: false is set [6]. All pods can reach all other pods unless a NetworkPolicy selects them [4]. A chart can change each of these defaults, so the chart's choices matter.

Hardening baselines. The Kubernetes Pod Security Standards define three profiles (Privileged, Baseline, Restricted); Restricted requires non-root containers and disallows privilege escalation [1]. Pod Security Admission enforces these profiles per namespace [2]. The Kubernetes RBAC good practices page warns against granting Secret read and pods/exec broadly [3]. The CIS Kubernetes Benchmark [7] and the NSA and CISA Kubernetes Hardening Guide [8] give the same advice: run as non-root, limit ServiceAccount rights, default-deny network traffic, and pin images. The Kubernetes security checklist summarises these [5]. Our checks (section 4.3) follow these sources.

AI application risks. The OWASP Top 10 for LLM Applications (2025) lists risks such as Excessive Agency (LLM06), Vector and Embedding Weaknesses (LLM08) and Unbounded Consumption (LLM10) [9]. An unauthenticated model or vector endpoint makes several of these easier to reach. The Model Context Protocol specification makes authorization optional for implementations, and warns that Streamable HTTP servers should validate the Origin header and implement authentication [10].

Prior exposure research. ShadowRay [11] and the Ollama scans by Wiz [13] and Cisco [14] measured internet exposure of running servers. They did not examine why the servers were open. We start one step earlier, at the chart default, and measure what an in-cluster caller can reach. We are not aware of a prior study that renders and probes this set of AI charts with the same checks.

Scanners. Kubescape [15], Checkov [16], kube-linter [17] and Trivy [18] check manifests against rules close to the baselines above. They do not know application semantics, such as whether an HTTP API requires a key.

3. Threat model and scope

Attacker position. The threat model assumes the attacker already controls a single pod in the cluster, in any namespace, with no initial Kubernetes credentials beyond that pod's mounted ServiceAccount token. Typical scenarios include a compromised public-facing web app, a malicious dependency executed inside a CI runner, or an untrusted tenant in a shared cluster. From this position, the attacker can send internal network traffic to any Kubernetes Service reachable within the cluster network. We refer to this as the "network neighbour" position.

Crucially, this evaluation models an in-cluster attacker, not an unauthenticated internet adversary. Where a chart requests an external exposure mechanism by default, such as Weaviate's default LoadBalancer Service or the containers/kubernetes-mcp-server Ingress, whether this results in actual internet exploitability depends entirely on cloud provider configuration, VPC routing, and public versus private subnet placement. We did not test live exploitation from the internet.

Assets. Model and vector data; compute (GPU or CPU time); the tool's own admin functions; Kubernetes Secrets; and the ability to run code or change workloads elsewhere in the cluster.

In scope. The chart's default values and rendered manifests; the application's default auth and telemetry behaviour where the chart leaves it unchanged; runtime user and effective RBAC after install; unauthenticated HTTP access from inside the cluster.

Out of scope. Container image CVEs; auth bypass or logic flaws once auth is turned on; supply chain; attacks from the public internet; cloud provider security controls; any third-party or production system.

Definition of "default". helm template or helm install with the chart's own values.yaml and no overrides, except the minimum value three charts need to render at all (section 4.2). A documented default still counts as a finding. The question is what an unchanged install does, not whether the vendor warned about it.

4. Methodology: How we tested 15 AI Helm charts

The study has two passes. The static pass renders each chart and inspects the YAML. It covers all 15 charts and answers questions that a manifest can answer. The dynamic pass installs each chart on a local cluster and sends requests. It covers fewer charts, but it checks whether the static answer holds for a running system. Figure 1 shows the flow.

tools.tsv --> helm template --> evidence/rendered/*.yaml --+--> 4 scanners --> scan-summary.json
  (15 charts,  (defaults)                                  +--> our checker --+
   pinned)                                                  +--> manual-checks.tsv (docs, source)
                                                                              |
kind cluster --> helm install --> curl pod probes, id, can-i --> dynamic-results.tsv
                                                                              v
                                   results.csv --> totals       --> totals.json --> report, figures

Figure 1: Study pipeline. Every number in the report comes from results.csv or a file in evidence/, through evidence/totals.json. The reader can check any cell by following one arrow back.

4.1 Tool selection

Selection rule: popular (GitHub stars of the main project repo on 24 September 2026) and an official Helm chart or manifest from the vendor or project org. We chose "official" because it is the chart a vendor's own docs point to, so its defaults are the vendor's decision. We chose four categories (serving, gateway and UI, vector database, Kubernetes MCP) because a typical self-hosted AI stack combines them. Ollama has no chart of its own, so we used otwld/ollama, the most used community chart. All charts were pulled on 24 September 2026. Source: tools.tsv, results.csv.

Table 1: Tools, chart sources and pinned versions.

Tool Chart repo Chart version App version GitHub stars Pull date
vLLM production-stack vllm/vllm-stack (vllm-project.github.io/production-stack) 0.1.12 router latest 92,548 2026-09-24
KServe oci://ghcr.io/kserve/charts/kserve-resources v0.20.0 v0.20.0 5,992 2026-09-24
KubeRay / Ray kuberay/kuberay-operator + kuberay/ray-cluster 1.7.1 Ray 2.52.0 43,910 2026-09-24
AIBrix vllm-project/aibrix dist/chart (git tag v0.7.0, c5465890) 0.7.0 0.7.0 (values use nightly) 5,107 2026-09-24
Ollama (otwld) otwld/ollama (helm.otwld.com) 1.83.0 0.34.2 181,534 2026-09-24
Open WebUI open-webui/open-webui (helm.openwebui.com) 16.6.0 0.11.4 152,943 2026-09-24
LocalAI go-skynet/local-ai (go-skynet.github.io/helm-charts) 3.4.2 image latest 49,243 2026-09-24
LiteLLM oci://ghcr.io/berriai/litellm-helm (digest sha256:b2c57bc9...1526) 1.102.1 1.102.1 59,503 2026-09-24
Langfuse langfuse/langfuse (langfuse.github.io/langfuse-k8s) 2.1.2 4.38.0 34,980 2026-09-24
n8n n8n-io/n8n-hosting charts/n8n (git 359e1772) 1.13.0 2.40.5 205,806 2026-09-24
Qdrant qdrant/qdrant (qdrant.github.io/qdrant-helm) 1.19.1 v1.19.1 34,771 2026-09-24
Weaviate weaviate/weaviate (weaviate.github.io/weaviate-helm) 17.8.3 1.38.2 16,841 2026-09-24
Milvus milvus/milvus (zilliztech.github.io/milvus-helm) 5.0.28 3.0.1 46,242 2026-09-24
containers/kubernetes-mcp-server oci://ghcr.io/containers/charts/kubernetes-mcp-server 0.1.0 0.0.67 (image latest) 2,116 2026-09-24
Flux159 mcp-server-kubernetes Flux159/mcp-server-kubernetes helm-chart (git tag v4.1.7, 26a165cf) 2.8.0 2.8.0 (image latest) 1,594 2026-09-24

Considered and excluded: Flowise and Chroma (no official chart), NVIDIA NIM Operator (needs an NGC key and GPU), llm-d (multi-chart guides, no single default install), Text Generation Inference and SGLang (no official chart found).

4.2 Default values and render overrides

We used the chart's own values.yaml with no overrides, into namespace sbd (static) or a namespace per tool (live). Three charts refuse to render without one value. We set the minimum value needed and nothing else, so the result still reflects the vendor's defaults.

Table 2: The only overrides used, and why.

Chart Override Why
n8n secretRefs.env.N8N_ENCRYPTION_KEY=research-placeholder-not-a-secret Chart refuses the placeholder key (evidence/rendered/n8n.err). This is a secure default.
containers/kubernetes-mcp-server ingress.host=mcp.example.invalid Ingress is on by default and needs a host (evidence/rendered/k8s-mcp-server.err).
Langfuse clickhouse.crdCheck=false Offline render only, as the chart error message suggests.

A check is marked as an insecure default when the rendered manifest (or, for auth and telemetry, the application default the chart leaves in place) is the insecure choice. Documented choices still count: the question is what an unchanged install does.

4.3 Check definitions

Each check asks one yes or no question about the default. Table 3 gives the plain meaning, the exact rule, and why it matters to the attacker in section 3. The rules are implemented in our internal checker (static) and totals script (matrix), both covered by unit tests.

Table 3: The 12 checks. "X" in the matrix means the rule matched.

Check Plain meaning Exact rule (X when) Why it matters
Auth API auth omitted or disabled Model, vector or MCP endpoint accepts requests with no key, token or session by default (docs and source, manual-checks.tsv; confirmed live where possible). n/a if the chart has no such endpoint. In-cluster callers can invoke or modify the tool without credentials.
Root Chart does not enforce non-root At least one long-running container has neither runAsNonRoot: true nor a non-zero runAsUser, at pod or container level. Init containers are not counted. Container execution user defaults to image specification, increasing blast radius if paired with code execution.
Priv Privileged container Any container with privileged: true in the render. Privileged containers have near host-level access.
hostPath Host filesystem mount Any pod volume of type hostPath. Direct access to node files.
SA token Automounts token (K8s default) At least one pod mounts a ServiceAccount token by default (pod or ServiceAccount does not set automountServiceAccountToken: false). Default Kubernetes behavior. An attacker compromising the pod inherits the ServiceAccount's API identity.
Secrets Cluster-wide Secret read A ClusterRole in the render grants get, list or watch on secrets. The chart's ServiceAccount can read credentials in every namespace.
NetPol No default network policy No NetworkPolicy object in the render. Default Kubernetes behavior. Exploitability depends on cluster architecture; pods can reach the tool unless CNI default-deny is applied.
Limits Missing resource limits At least one long-running container has neither a CPU nor a memory limit. In-cluster caller can exhaust node resources (OWASP LLM10 [9]).
Tag Floating image tag Any image with no tag or with latest, main, nightly, stable, master or dev. The running code can change with no chart change, and cannot be audited.
Telem Telemetry on The application sends usage data to the vendor by default and the chart does not turn it off (docs and source). Data leaves the cluster without an explicit choice.
Creds Known placeholder credential A Secret, ConfigMap or env value in the render equals a well-known placeholder (for example minioadmin), or an env URL contains a literal password. Random per-install values do not count. Anyone who has read the chart knows the password.
Expose Requests external routing A LoadBalancer or NodePort Service, or an Ingress, HTTPRoute or Route, is on by default. External reach depends on cloud networking and public subnet configuration; not tested from internet.

4.4 Static pass

  1. Render each chart with helm template (section 5.2).
  2. Run four scanners on each render: Kubescape, Checkov, kube-linter and Trivy in config mode. We used four because each has different rule sets and none covers everything. Counts go to evidence/scans/scan-summary.json and scan-detail.json.
  3. Run our checker on each render for the checks in Table 3. It also reads pod templates inside RayCluster custom resources, which the scanners skip.
  4. Check auth and telemetry by hand against vendor docs and source, because a manifest often does not show them. Results and citations are in manual-checks.tsv.
  5. Merge into results.csv, one row per tool, with an evidence column for every check.

4.5 Dynamic pass

We installed each chart on a local kind cluster, one or two at a time, with the same values as the static pass. A curl pod in its own namespace sent HTTP requests with no credentials to the tool's Services. For each tool that started we recorded: the HTTP status and body for each request, the container user (id), and for charts with RBAC the effective permissions (kubectl auth can-i --list). A tool that was not ready within 10 minutes was skipped and the reason recorded. Writes were limited to creating and deleting one empty object per tool. For five tools every request and response was logged in full (section 5.2).

4.6 Severity scheme

We rate each finding High, Medium or Low using the rubric in section 7.1. We did not use CVSS [19], because CVSS evaluates standardized software vulnerabilities rather than configuration defaults that vendors deliberately document for quick onboarding. Our rubric is a contextual evaluation under the stated in-cluster threat model, assessing what actions an uncredentialed network neighbour can perform, whether code execution or privilege escalation occurs, and whether the finding was confirmed live.

5. Experimental setup

5.1 Environment

Recorded in evidence/environment.txt. Dynamic testing was conducted on a single-node local kind cluster running on an Apple Silicon laptop with no GPU and no external ingress controllers, rather than a multi-node production cloud environment (EKS, GKE, or AKS). The trade-offs and differences from enterprise production environments are detailed in section 9.

Table 4: Test environment.

Item Value
Host Apple M1 Pro laptop, arm64, macOS 14.2.1
Docker Docker Desktop 24.0.7 (client and server), VM 8,227,573,760 bytes RAM, 10 CPUs
kind [20] v0.33.0, one node, image kindest/node@sha256:a1ed56cf...580ae5
Kubernetes v1.37.0 (from /kind/version in the node image)
GPU none (CPU only)
Helm (render) v3.19.0 (Helm 3.15 cannot render Langfuse: fromToml missing)
Scanners Kubescape 4.0.14, Checkov 3.3.19, kube-linter 0.8.3, Trivy 0.74.0 (config mode)

The kind cluster used its own kubeconfig file (/tmp/sbd/kind.kubeconfig). Every call passed --context kind-sbd. No other kube context was read or changed. The static pass used an empty kubeconfig.

5.2 Commands

Static render:

helm template rel <chart-dir> --namespace sbd [override] > rendered/<name>.yaml
kube-linter lint rendered/<name>.yaml --format json > scans/<name>.kubelinter.json
trivy config --quiet --format json rendered/<name>.yaml > scans/<name>.trivy.json
checkov -f rendered/<name>.yaml --framework kubernetes -o json --quiet --compact > scans/<name>.checkov.json
kubescape scan rendered/<name>.yaml --format json --output scans/<name>.kubescape.json

Live pass (one or two charts at a time, on a kind cluster deleted afterwards):

kind create cluster --name sbd --kubeconfig /tmp/sbd/kind.kubeconfig
kubectl --context kind-sbd -n probe run curl --image=curlimages/curl:8.10.1 --restart=Never --command -- sleep 36000
helm --kube-context kind-sbd install rel <chart> -n <ns> [override] --wait --timeout 10m
kubectl --context kind-sbd -n probe exec curl -- curl -s -m 5 -w ' HTTP %{http_code}' http://<svc>.<ns>.svc:<port><path>
kubectl --context kind-sbd -n <ns> exec <pod> -- id
kubectl --context kind-sbd auth can-i --list --as=system:serviceaccount:<ns>:<sa>
kind delete cluster --name sbd

For Ray, Ollama, Qdrant, Weaviate and Open WebUI, curl -sS -i -w logged every request and response in full.

Probe rules: requests only to Services we installed, no credentials sent, writes limited to creating and deleting one empty collection (Qdrant) or class (Weaviate) and one echo job (Ray). Tools not ready within 10 minutes were skipped and the reason recorded.

6. Results: Which charts fail which security checks?

This section gives the data. Section 7 turns it into findings. Section 8 provides a per-tool breakdown with hardening values. Section 9 discusses what it means.

6.1 Results matrix

Table 5 answers RQ1 and RQ2 for all 15 charts. Read it by row to see one tool's defaults, or by column to see how common one weakness is. X = insecure default present. ok = not present. n/a = check does not apply. Source: evidence/totals.json (matrix), built from results.csv. Privileged and hostPath are read from evidence/rendered/*.yaml.

Check definitions are in Table 3 (section 4.3).

Table 5: Insecure defaults per tool and check (80 X cells in 179 applicable cells).

Tool Auth Root Priv hostPath SA token Secrets NetPol Limits Tag Telem Creds Expose X count
vLLM production-stack X X ok ok X ok X ok X ok ok ok 5
KServe n/a ok ok ok X X X ok ok ok ok ok 3
KubeRay / Ray X X ok ok X X X ok ok X ok ok 6
AIBrix X X ok ok X X X X X ok ok X 8
Ollama (otwld) X X ok ok X ok X X ok ok ok ok 5
Open WebUI ok X ok ok X ok X X X ok ok ok 5
LocalAI X X ok ok X ok X X X ok ok ok 6
LiteLLM ok X ok ok X ok ok X ok ok X ok 4
Langfuse ok X ok ok X ok X X ok X ok ok 5
n8n ok ok ok ok X ok X ok ok X ok ok 3
Qdrant X ok ok ok X ok X X ok X ok ok 5
Weaviate X X X ok X ok X X X X ok X 9
Milvus X X ok ok X ok X X ok ok X ok 6
containers/kubernetes-mcp-server X ok ok ok X ok X ok X ok ok X 5
Flux159 mcp-server-kubernetes X ok ok ok X X X ok X ok ok ok 5
Total X 10 of 14 10 of 15 1 of 15 0 of 15 15 of 15 4 of 15 14 of 15 9 of 15 7 of 15 5 of 15 2 of 15 3 of 15 80

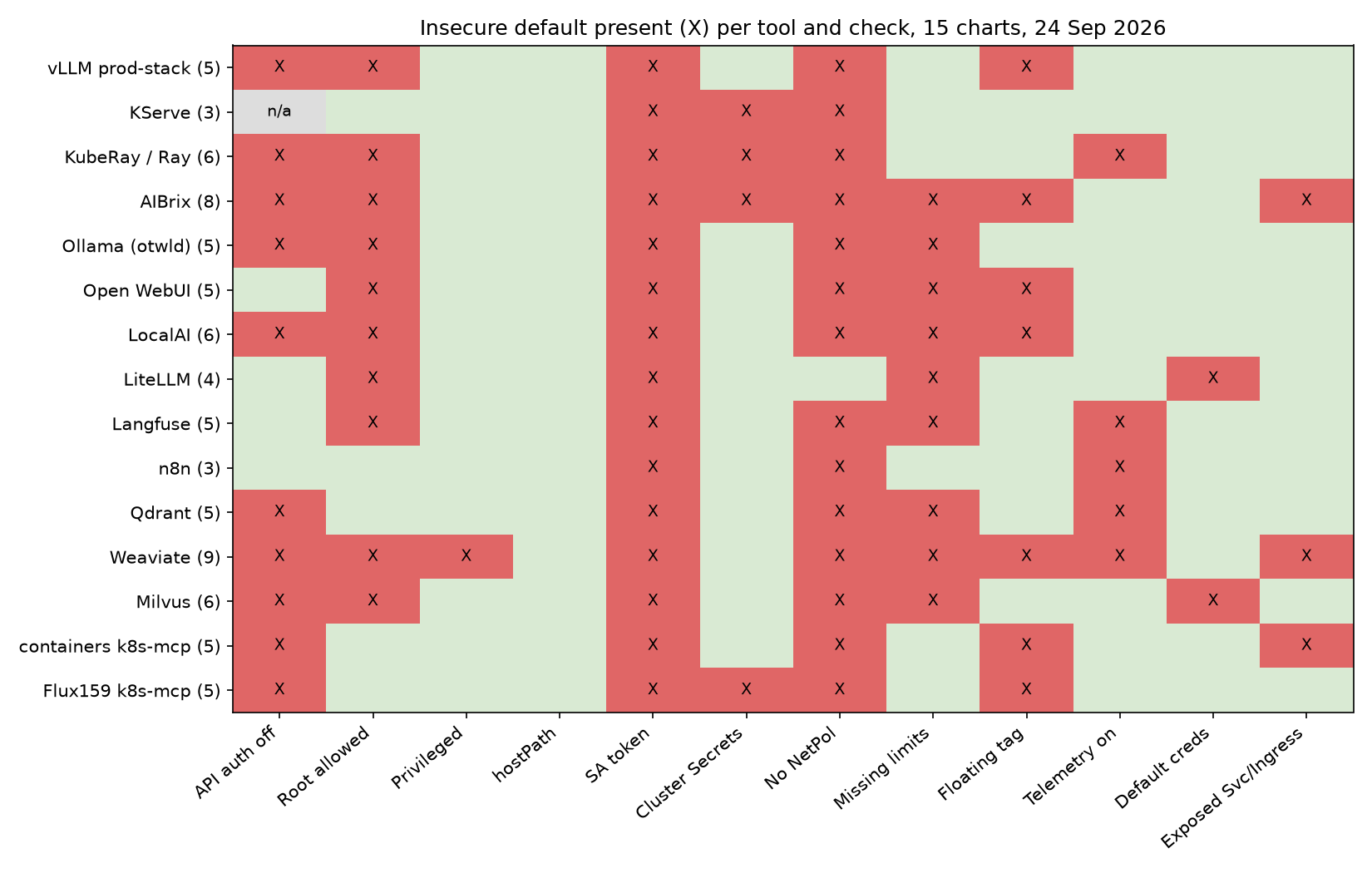

Heatmap of insecure defaults per tool and check

Figure 2: Table 5 as a heatmap. Red cells are insecure defaults. The SA token and NetPol columns are almost fully red: nearly every chart leaves pod token mounting and network reach at default Kubernetes settings. The Auth and Root columns are the next most common, and they overlap in 7 tools where unauthenticated network access coincides with missing non-root enforcement.

Notes on the matrix:

6.2 Scanner results

This section answers RQ4. It shows what an operator would see if they ran a standard scanner on the default render, before installing. Failed checks on the default render. Source: evidence/scans/scan-detail.json (built from the raw scanner JSON) and evidence/scans/scan-summary.json. Severity split is shown as Critical/High/Medium/Low. Checkov and kube-linter do not rate severity in this setup (Checkov severities need a Prisma Cloud key; kube-linter has no severity field), so only counts are shown. "Top 3" is ordered by number of failing resources.

Failed scanner checks per tool

Figure 3: Failed scanner checks per tool on the default render. Milvus dominates because it deploys 14 workloads; counts grow with the number of resources, not only with risk. The Ray cluster bar is empty although Table 5 shows root allowed, which is the main scanner blind spot in this study.

Kubescape and Trivy (with severity)

Table 6: Kubescape and Trivy results per tool.

Tool Kubescape score Kubescape failed controls (C/H/M/L) Kubescape top 3 Trivy failed (C/H/M/L) Trivy top 3
vLLM production-stack 79.3 19 (0/6/10/3) C-0009, C-0013, C-0016 16 (0/3/6/7) KSV-0118, KSV-0001, KSV-0003
KServe 80.4 21 (0/6/13/2) C-0053, C-0012, C-0037 15 (2/3/6/4) KSV-0056, KSV-0020, KSV-0021
KubeRay operator 79.2 21 (0/6/11/4) C-0053, C-0004, C-0007 13 (1/4/4/4) KSV-0056, KSV-0048, KSV-0015
AIBrix 79.4 31 (0/11/16/4) C-0013, C-0017, C-0030 104 (2/20/28/54) KSV-0118, KSV-0014, KSV-0020
Ollama (otwld) 76.4 23 (0/7/9/7) C-0004, C-0009, C-0013 34 (0/6/8/20) KSV-0118, KSV-0001, KSV-0003
Open WebUI 76.6 25 (0/7/10/8) C-0004, C-0009, C-0013 100 (0/17/23/60) KSV-0118, KSV-0001, KSV-0003
LocalAI 73.7 25 (0/7/11/7) C-0004, C-0009, C-0013 18 (0/3/5/10) KSV-0118, KSV-0001, KSV-0003
LiteLLM 77.3 25 (0/7/11/7) C-0004, C-0009, C-0013 81 (0/13/18/50) KSV-0118, KSV-0011, KSV-0014
Langfuse 75.7 32 (0/10/14/8) C-0030, C-0076, C-0211 122 (0/17/29/76) KSV-0118, KSV-0020, KSV-0021
n8n 78.4 29 (0/9/13/7) C-0017, C-0030, C-0034 27 (0/5/7/15) KSV-0014, KSV-0020, KSV-0021
Qdrant 80.4 22 (0/6/10/6) C-0013, C-0017, C-0030 44 (0/5/11/28) KSV-0003, KSV-0004, KSV-0020
Weaviate 76.6 22 (0/8/10/4) C-0004, C-0009, C-0013 36 (0/5/9/22) KSV-0001, KSV-0003, KSV-0004
Milvus 73.8 38 (0/11/18/9) C-0004, C-0009, C-0017 356 (0/55/97/204) KSV-0118, KSV-0003, KSV-0004
containers/kubernetes-mcp-server 85.4 11 (0/3/6/2) C-0013, C-0030, C-0034 4 (0/0/2/2) KSV-0013, KSV-0020, KSV-0021
Flux159 mcp-server-kubernetes 72.1 32 (0/8/16/8) C-0013, C-0018, C-0030 45 (1/6/15/23) KSV-0013, KSV-0020, KSV-0021
Total 1,015 (6/162/268/579)

Trivy High plus Critical across all charts: 168.

Checkov and kube-linter (counts only)

Table 7: Checkov and kube-linter results per tool.

Tool Checkov failed Checkov top 3 kube-linter findings kube-linter top 3
vLLM production-stack 14 CKV2_K8S_6, CKV_K8S_11, CKV_K8S_14 4 dangling-service, latest-tag, no-read-only-root-fs
KServe 8 CKV2_K8S_6, CKV_K8S_15, CKV_K8S_155 3 env-var-secret, liveness-port, readiness-port
KubeRay operator 6 CKV2_K8S_6, CKV_K8S_15, CKV_K8S_29 1 unset-cpu-requirements
AIBrix not parsed (0 resources) n/a 20 no-read-only-root-fs, run-as-non-root, unset-memory-requirements
Ollama (otwld) 34 CKV2_K8S_6, CKV_K8S_10, CKV_K8S_11 9 no-read-only-root-fs, run-as-non-root, unset-cpu-requirements
Open WebUI 88 CKV2_K8S_6, CKV_K8S_10, CKV_K8S_11 25 no-read-only-root-fs, run-as-non-root, unset-cpu-requirements
LocalAI 18 CKV2_K8S_6, CKV_K8S_11, CKV_K8S_13 5 latest-tag, no-read-only-root-fs, run-as-non-root
LiteLLM 82 CKV_K8S_21, CKV_K8S_11, CKV_K8S_13 21 no-read-only-root-fs, unset-cpu-requirements, unset-memory-requirements
Langfuse 106 CKV_K8S_21, CKV2_K8S_6, CKV_K8S_40 29 unset-cpu-requirements, unset-memory-requirements, no-read-only-root-fs
n8n 34 CKV2_K8S_6, CKV_K8S_15, CKV_K8S_22 9 no-read-only-root-fs, no-anti-affinity, pdb-min-available
Qdrant 38 CKV_K8S_21, CKV2_K8S_6, CKV_K8S_20 9 no-read-only-root-fs, run-as-non-root, unset-cpu-requirements
Weaviate 24 CKV_K8S_21, CKV2_K8S_6, CKV_K8S_10 11 no-read-only-root-fs, run-as-non-root, unset-cpu-requirements
Milvus 217 CKV_K8S_11, CKV_K8S_13, CKV_K8S_15 84 no-read-only-root-fs, unset-memory-requirements, run-as-non-root
containers/kubernetes-mcp-server 6 CKV2_K8S_6, CKV_K8S_14, CKV_K8S_15 1 latest-tag
Flux159 mcp-server-kubernetes 45 CKV_K8S_21, CKV2_K8S_6, CKV_K8S_14 9 latest-tag, unset-cpu-requirements, unset-memory-requirements
Total 720 240

Scanner caveats:

What the scanners do and do not tell you. They flag the generic hardening gaps in Table 5 (root, limits, NetworkPolicy, tags) consistently, and with many duplicate hits per resource. None of them can say whether an API requires a login (the Auth column), whether telemetry is on, or what a ClusterRole means once bound. Those are the checks that produced the High findings in section 7. A clean scanner run is therefore not evidence that an AI chart is safe to install as is.

6.3 Live probe results

This section answers RQ3: does the static answer hold on a running install? 8 of 15 charts started on defaults and were probed from a curl pod in namespace probe. 7 did not start (section 6.6). All requests carried no credentials. Response bodies are trimmed. Source files are named under each tool.

API auth by default: static versus live

Figure 4: API auth by default. Left: the static result for the 14 tools with an API (10 off, 4 on). Right: the 8 tools we could run (6 off, 2 on). Every live result matched the static one, so the static Auth column is a reliable guide for the 6 API tools we could not start.

Summary

Table 8: Live result per probed tool.

Tool Static auth Live result Runtime user (id) Evidence
KubeRay / Ray off open: dashboard 200, job submit ran a command uid=1000(ray), in group sudo; sudo -n id gives uid=0 evidence/dynamic/ray-probe-full.txt, ray-probe.txt
Ollama (otwld) off open: 200 on /api/version, /api/tags, /api/ps uid=0(root) evidence/dynamic/ollama-probe-full.txt, ollama-probe.txt
Qdrant off open: 200 on reads, create and delete worked uid=1000 gid=2000 evidence/dynamic/qdrant-probe-full.txt, vector-probe.txt
Weaviate off open: 200 on reads, create and delete worked, also on NodePort uid=0(root) evidence/dynamic/weaviate-probe-full.txt, vector-probe.txt
containers/kubernetes-mcp-server off open: MCP initialize and tools/list (20 tools); tool calls Forbidden by RBAC not recorded evidence/dynamic/kmcp-probe.txt
Flux159 mcp-server-kubernetes off open: 23 tools; listed Secrets in other namespaces not recorded evidence/dynamic/flux159-probe.txt
Open WebUI on refused: 401 on 4 API paths; /api/config 200 with enable_signup: true, onboarding: true uid=0(root) evidence/dynamic/owui-probe-full.txt, owui-probe.txt
LiteLLM on refused: 401 on 7 API paths; /ui/ and /openapi.json 200 not recorded evidence/dynamic/litellm-probe.txt

Totals (evidence/totals.json, dynamic): auth off confirmed live 6 of 6, auth on confirmed live 2 of 2, ran as uid 0 3 of 4 static "root allowed" tools with a recorded user. No live result contradicted the static result.

6.4 Requests and responses

The blocks below are the evidence behind Table 8. Each shows what a pod with no credentials asked for and what it got. For Ray, Ollama, Qdrant, Weaviate and Open WebUI, the *-probe-full.txt files hold the UTC timestamp, the full curl command, method, URL, request body, HTTP status, response headers and response body. Bodies over 2 KB are trimmed, and the file says so. The blocks below show method, path, request body and status from those files.

KubeRay / Ray (dashboard port 8265, head Service rc-kuberay-head-svc). evidence/dynamic/ray-probe-full.txt

GET  http://rc-kuberay-head-svc.kuberay.svc:8265/api/version           200 {"version": "4", "ray_version": "2.52.0", ...}
GET  http://rc-kuberay-head-svc.kuberay.svc:8265/nodes?view=summary    200 {"result": true, "msg": "Node summary fetched.", ...} (17 KB, trimmed)
GET  http://rc-kuberay-head-svc.kuberay.svc:8265/api/jobs/             200 []
POST http://rc-kuberay-head-svc.kuberay.svc:8265/api/jobs/
     body {"entrypoint":"echo sbd-probe-$(id -u)","submission_id":"sbd-probe-2"}
                                                                        200 {"job_id": "sbd-probe-2", "submission_id": "sbd-probe-2"}
GET  http://rc-kuberay-head-svc.kuberay.svc:8265/api/jobs/sbd-probe-2  200 {... "status": "SUCCEEDED", "message": "Job finished successfully." ...}
GET  http://rc-kuberay-head-svc.kuberay.svc:8265/api/jobs/sbd-probe-2/logs
                                                                        200 {"logs": "...Running entrypoint for job sbd-probe-2: echo sbd-probe-$(id -u)\nsbd-probe-1000\n"}
id (head):   uid=1000(ray) gid=100(users) groups=100(users),27(sudo)
sudo -n id:  uid=0(root) gid=0(root) groups=0(root)
head SA: default (token mounted: ca.crt namespace token); default SA get secrets: no

Ollama (port 11434, Service rel-ollama). evidence/dynamic/ollama-probe-full.txt

GET    http://rel-ollama.ollama.svc:11434/              200 Ollama is running
GET    http://rel-ollama.ollama.svc:11434/api/version   200 {"version":"0.34.2"}
GET    http://rel-ollama.ollama.svc:11434/api/tags      200 {"models":[]}
GET    http://rel-ollama.ollama.svc:11434/api/ps        200 {"models":[]}
POST   http://rel-ollama.ollama.svc:11434/api/show      body {"model":"sbd-probe-nonexistent"}
                                                        404 {"error":"model 'sbd-probe-nonexistent:latest' not found"}
DELETE http://rel-ollama.ollama.svc:11434/api/delete    body {"model":"sbd-probe-nonexistent"}
                                                        404 {"error":"model 'sbd-probe-nonexistent' not found"}
id: uid=0(root) gid=0(root) groups=0(root)

The 404s show the model management endpoints answer without auth. No model was loaded, so nothing was deleted.

Qdrant (port 6333, Service rel-qdrant). evidence/dynamic/qdrant-probe-full.txt

GET    http://rel-qdrant.qdrant.svc:6333/                        200 {"title":"qdrant - vector search engine","version":"1.19.1",...}
GET    http://rel-qdrant.qdrant.svc:6333/collections             200 {"result":{"collections":[]},"status":"ok"}
PUT    http://rel-qdrant.qdrant.svc:6333/collections/sbd_probe
       body {"vectors":{"size":4,"distance":"Cosine"}}           200 {"result":true,"status":"ok"}
GET    http://rel-qdrant.qdrant.svc:6333/collections             200 {"result":{"collections":[{"name":"sbd_probe"}]},"status":"ok"}
GET    http://rel-qdrant.qdrant.svc:6333/collections/sbd_probe   200 {"result":{"status":"green",...,"points_count":0,...}}
DELETE http://rel-qdrant.qdrant.svc:6333/collections/sbd_probe   200 {"result":true,"status":"ok"}
GET    http://rel-qdrant.qdrant.svc:6333/collections             200 {"result":{"collections":[]},"status":"ok"}
id: uid=1000 gid=2000 groups=2000,3000

Same Service, no auth: /telemetry, /cluster and /dashboard also returned 200 (vector-probe.txt).

Weaviate (Service weaviate, port 80). evidence/dynamic/weaviate-probe-full.txt

GET    http://weaviate.weaviate.svc/v1/meta                200 {"grpcMaxMessageSize":104858000,"hostname":"http://[::]:8080",...} (5.7 KB, trimmed)
GET    http://weaviate.weaviate.svc/v1/schema              200 {"classes":[]}
GET    http://weaviate.weaviate.svc/v1/nodes               200 {"nodes":[{"name":"weaviate-0","status":"HEALTHY","version":"1.38.2",...}]}
POST   http://weaviate.weaviate.svc/v1/schema
       body {"class":"SbdProbe","vectorizer":"none","properties":[]}
                                                           200 {"class":"SbdProbe","invertedIndexConfig":{...
GET    http://weaviate.weaviate.svc/v1/schema              200 {"classes":[{"class":"SbdProbe",...}]}
GET    http://weaviate.weaviate.svc/v1/schema/SbdProbe     200 {"class":"SbdProbe",...}
DELETE http://weaviate.weaviate.svc/v1/schema/SbdProbe     200 (empty body)
GET    http://weaviate.weaviate.svc/v1/schema              200 {"classes":[]}
id: uid=0(root) gid=0(root) groups=0(root),1(bin),2(daemon),...

The logged install above set --set service.type=ClusterIP --set grpcService.type=ClusterIP so helm could finish on kind. The default install, whose LoadBalancer Service allocates a NodePort, answered GET /v1/meta on the node IP 172.20.0.2:32523 with 200 (vector-probe.txt).

Flux159 mcp-server-kubernetes (port 3001, streamable HTTP). evidence/dynamic/flux159-probe.txt

A request that names the Service in the Host header gets 403 Invalid Host header (DNS rebinding check). The same request with Host: localhost:3001 succeeds. The caller sets the Host header, so this is not access control.

POST /mcp  initialize (no token, Host: localhost:3001)
  HTTP/1.1 200 OK
  data: {"result":{"protocolVersion":"2025-03-26",...,"serverInfo":{"name":"kubernetes","version":"4.1.7"}},...}
POST /mcp  tools/list  -> 23 tools: cleanup, exec_in_pod, explain_resource, install_helm_chart, kubectl_apply,
  kubectl_context, kubectl_create, kubectl_delete, kubectl_describe, kubectl_generic, kubectl_get, kubectl_logs,
  kubectl_patch, kubectl_reconnect, kubectl_rollout, kubectl_scale, list_api_resources, node_management, ping,
  port_forward, stop_port_forward, uninstall_helm_chart, upgrade_helm_chart
POST /mcp  tools/call kubectl_get (secrets, all namespaces)
  data: {"result":{"content":[{"type":"text","text":"secret/sh.helm.release.v1.rel.v1\nsecret/bootstrap-token-abcdef\n"}]},...}

containers/kubernetes-mcp-server. evidence/dynamic/kmcp-probe.txt

POST /mcp  initialize (no token)  HTTP/1.1 200 OK  serverInfo.name "kubernetes-mcp-server"
POST /mcp  tools/list  -> 20 tools: configuration_view, events_list, namespaces_list, nodes_log, nodes_stats_summary,
  nodes_top, pods_delete, pods_exec, pods_get, pods_list, pods_list_in_namespace, pods_log, pods_run, pods_top,
  projects_list, resources_create_or_update, resources_delete, resources_get, resources_list, resources_scale
POST /mcp  tools/call pods_list       -> "pods is forbidden: User \"system:serviceaccount:kmcp:rel-kubernetes-mcp-server\" cannot list resource \"pods\"..."
POST /mcp  tools/call resources_list secrets -> "secrets is forbidden: ..."

The endpoint is open, but the chart binds no role, so tool calls fail. Any role later bound to this ServiceAccount becomes available to any caller.

Open WebUI (Service rel-open-webui, port 80). evidence/dynamic/owui-probe-full.txt

GET http://rel-open-webui.owui.svc/health                    200 {"status":true}
GET http://rel-open-webui.owui.svc/api/config                200 {"onboarding":true,"status":true,"name":"Open WebUI","version":"0.11.4",...,
                                                                  "features":{...,"auth":true,...,"enable_signup":true,"enable_login_form":true,...}}
GET http://rel-open-webui.owui.svc/api/models                401 {"detail":"Not authenticated"}
GET http://rel-open-webui.owui.svc/api/v1/users/             401 {"detail":"Not authenticated"}
GET http://rel-open-webui.owui.svc/api/v1/auths/             401 {"detail":"Not authenticated"}
GET http://rel-open-webui.owui.svc/api/v1/auths/admin/config 401 {"detail":"Not authenticated"}
id (open-webui container): uid=0(root) gid=0(root) groups=0(root)
pod env: WEBUI_AUTH, ENABLE_SIGNUP, DEFAULT_USER_ROLE not set by the chart (app defaults apply)

/api/config answers without auth and shows enable_signup: true and onboarding: true on a fresh install. First user becomes admin: in the running image, open_webui/routers/auths.py (0.11.4) sets the role of the first account created to admin, then sets ui.enable_signup to False. main.py returns onboarding: true while the user table is empty. We read this source inside our own pod and did not create an account. The excerpt is in the evidence file. The docs describe the same settings: https://docs.openwebui.com/reference/env-configuration.

After the first account is created, Open WebUI turns open sign-up off by itself. The exposure is the window between install and the first sign-up, not permanently open registration. F-09 already described that window. The bundled Ollama, Pipelines and Redis pods were not probed.

LiteLLM. evidence/dynamic/litellm-probe.txt

liveness check           "I'm alive!"
GET /v1/models           401 {"error":{"message":"Authentication Error, No api key passed in.",...,"code":"401"}}
GET /models              401 (same)
GET /model/info          401 (same)
GET /key/list            401 (same)
GET /user/list           401 (same)
GET /global/spend        401 (same)
GET /config/yaml         422 {"detail":[{"type":"missing","loc":["body"],"msg":"Field required",...}]}
GET /ui/                 200 <!DOCTYPE html>...
GET /openapi.json        200 {"openapi":"3.1.0","info":{"title":"LiteLLM API",...
GET /metrics             401 "Unauthorized access to metrics endpoint: Authentication Error, Malformed API Key passed in..."

6.5 Effective RBAC from kubectl auth can-i --list

A chart's ClusterRole says what its ServiceAccount may do. can-i asks the API server what it will actually allow, which is the answer that matters to an attacker who takes over the pod or, for an open MCP server, simply calls it. Run as kubectl auth can-i --list --as=system:serviceaccount:<ns>:<sa> in the release namespace. Non-resource URLs and self-review rules (present for every account) are left out. Full output in the named files.

Flux159 mcp-server-kubernetes (evidence/dynamic/flux159-can-i.txt, spot checks in flux159-can-i-spot.txt)

Table 9: Effective rights of the Flux159 MCP ServiceAccount.

Resources Verbs
pods, services, endpoints, configmaps, persistentvolumeclaims get list watch create update patch delete
deployments, daemonsets, replicasets, statefulsets (apps) get list watch create update patch delete
jobs, cronjobs (batch) get list watch create update patch delete
ingresses, networkpolicies (networking.k8s.io) get list watch create update patch delete
pods/exec, pods/log, pods/portforward create get
secrets, namespaces, nodes, events, CRDs get list watch
roles, rolebindings, clusterroles, clusterrolebindings get list watch

Spot checks, all namespaces: get secrets yes, create pods/exec yes, delete deployments yes, create clusterrolebindings no, delete nodes no.

KubeRay operator (evidence/dynamic/kuberay-can-i.txt, kuberay-can-i-spot.txt)

Table 10: Effective rights of the KubeRay operator ServiceAccount.

Resources Verbs
pods create delete deletecollection get list patch update watch
services, persistentvolumeclaims, jobs, ingresses, Ray CRDs create delete get list patch update watch
secrets create delete get list update watch
roles create delete get list update watch
rolebindings, serviceaccounts create delete get list watch
networkpolicies, gateways, httproutes create delete get list update watch
services/proxy create get patch update

The --list output has no pods/exec row, but the spot check create pods/exec -A returned yes. Spot checks, all namespaces: get secrets, create pods, create pods/exec, create services, create jobs, delete pods, create rolebindings, create roles all yes.

containers/kubernetes-mcp-server (evidence/dynamic/kmcp-can-i.txt, kmcp-can-i-spot.txt)

Table 11: Effective rights of the containers/kubernetes-mcp-server ServiceAccount.

Resources Verbs
clustertrustbundles.certificates.k8s.io get list watch
(self-review and discovery only)

Spot checks: get secrets -A no, list pods -A no, get secrets -n kmcp no, create pods/exec -n kmcp no.

The two MCP servers show the range. Both are open by default. One has no rights, so an open endpoint does little until someone binds a role. The other ships with cluster-wide Secret read and pods/exec, so an open endpoint is a cluster takeover path.

6.6 Charts not tested live

Seven charts did not reach a running state on one 8 GB arm64 node. Most need prerequisites the chart does not install. Their static results stand, but were not confirmed live.

Table 12: Charts not tested live, and why.

Tool Result Exact reason Evidence
vLLM production-stack not installed Router image lmcache/lmstack-router:latest has no linux/arm64 manifest (pre-pull FAIL in 3s). The engine also needs a model and GPU. evidence/dynamic/skipped.txt, prepull.tsv
KServe install failed Needs a cert-manager Issuer and the kserve-crd chart (ClusterStorageContainer) first. Documented prerequisite. evidence/dynamic/kserve-probe.txt
AIBrix not installed README requires kubectl apply -k config/dependency (Envoy Gateway and KubeRay CRDs) and a manual CRD apply first; default images are nightly. evidence/dynamic/skipped.txt
LocalAI not started Default PVCs request ReadWriteMany; kind's local-path provisioner supports ReadWriteOnce only. Pod Pending over 10 minutes. evidence/dynamic/localai-probe.txt
Langfuse install failed Chart validation (validations.yaml:107) requires ClickHouse operator CRDs and cert-manager. evidence/dynamic/skipped.txt
n8n not started CreateContainerConfigError: secret n8n-db-password not found; chart expects external Postgres and a pre-created Secret. All 5 HTTP probes returned 000. evidence/dynamic/n8n-probe.txt
Milvus not started Distributed default (etcd x3, MinIO x4, Pulsar, 5 Milvus components) did not fit one 8 GB node: MinIO and bookie Pending, Milvus parts CrashLoopBackOff. evidence/dynamic/milvus-probe.txt

Results for these 7 are static only. Not rendered at all: NVIDIA NIM Operator, llm-d, Flowise, Chroma, Text Generation Inference, SGLang (reasons in section 4.1).

7. Findings: Vulnerabilities and insecure defaults

Each finding below starts with a plain-language summary, then gives the affected version, the default values with file and line, the live evidence, the impact, the vendor's own position, and a values file fix. Section 8 provides a consolidated per-tool breakdown. Evidence paths are relative to the research folder.

7.1 Severity rubric and finding tiers

Findings are structured into three distinct tiers based on technical severity and practical exploitability under our in-cluster threat model: 1. Primary finding (credential leak): F-13 (LiteLLM database password leaked in plain-text Job environment variables, retrievable across RBAC boundaries). 2. Secondary findings (demonstrated attack chains under threat model): F-01 (Flux159 unauthenticated MCP server with cluster-wide Secret read and pod exec) and F-02 (Ray unauthenticated Jobs API with arbitrary code execution and passwordless sudo). 3. Tertiary findings (hardening posture gaps): F-03 to F-12 (omitted native authentication, containers running as root without enforcement, unsegmented network policies, missing resource limits, and default token automounting).

Table 13: Severity rubric.

Severity Criteria (all on a default install under stated threat model)
High Any pod that can reach the Service, with no credentials, can run code, change workloads, or read Secrets outside the tool's own data. Confirmed live in kind environment.
Medium No-credential read or write of the tool's own data (models, vectors, schema), or a credential another user can read without Secret access (F-13), or a public exposure path. Confirmed live or in the render.
Low Hardening posture gap that needs another weakness or misconfiguration to matter (non-root execution not enforced, no default NetworkPolicy, floating tag, telemetry on).

Findings are not rated by CVSS because most represent documented configuration defaults intended for quick evaluation, not software security flaws. The High, Medium and Low designations reflect Sorami's contextual evaluation under the stated in-cluster threat model. "Documented" means the vendor states the default and the fix in its own chart or docs. Doc URLs were checked on 24 September 2026 (evidence/doc-urls.tsv, all HTTP 200).

Table 14: Findings overview.

ID Tool Finding Severity Analysis type Documented by vendor
F-01 Flux159 mcp-server-kubernetes Open MCP endpoint with cluster Secret read and pods/exec High Live validated yes
F-02 KubeRay / Ray Open Jobs API runs code; sudo to root High Live validated yes
F-03 Weaviate Anonymous read and write; LoadBalancer; root; privileged init Medium Live validated yes
F-04 Qdrant No API key; reads and writes open Medium Live validated yes
F-05 Ollama (otwld) No auth feature; 0.0.0.0; root Medium Live validated yes
F-06 containers/kubernetes-mcp-server Open MCP endpoint; Ingress on Medium Live validated Ingress yes, auth no
F-07 vLLM production-stack No API key; root allowed explicitly Low Static analysis yes
F-08 Milvus MinIO placeholder credentials; auth off Medium Static analysis yes
F-09 Open WebUI First sign-up becomes admin; root Low Live validated yes
F-10 Langfuse Open sign-up; telemetry on Low Static analysis yes
F-11 KServe, KubeRay, AIBrix, Flux159 Cluster-wide Secret read Low Static analysis (Ray/Flux159 live verified) n/a
F-12 All SA tokens, no NetworkPolicy, limits, tags, telemetry Low Static analysis n/a
F-13 LiteLLM Migration Job writes the DB password in plain text Medium Live validated no

F-01 Flux159 mcp-server-kubernetes: unauthenticated MCP endpoint with cluster-wide Secret read and pods/exec

In plain terms: an AI agent tool that can manage the whole cluster is installed with no password, so any pod can ask it to read every Secret or run commands in any pod.

security:
  mcpAuthToken: "<long random value>"   # server then requires X-MCP-AUTH
networkPolicy:
  enabled: true
image:
  tag: "2.8.0"

Also trim rbac.rules to the namespaces and verbs the agent needs, and drop secrets and pods/exec unless required.

F-02 KubeRay / Ray: unauthenticated Jobs API runs code; container user can sudo to root

In plain terms: Ray's job API runs any command it is sent, with no login, and the container user can become root without a password. This is the same API abused in ShadowRay [11].

common:
  containerEnv:
    - name: RAY_AUTH_MODE
      value: token
head:
  securityContext:
    runAsNonRoot: true
    allowPrivilegeEscalation: false

Follow the Ray token authentication guide for KubeRay to provide the token. For the operator, set singleNamespaceInstall: true with a watchNamespace list.

F-03 Weaviate: anonymous read and write, two LoadBalancer Services, root and a privileged init container

In plain terms: the vector database lets anyone read, change or delete data, and on a cloud cluster the default asks for a public IP address.

service:
  type: ClusterIP
grpcService:
  type: ClusterIP
authentication:
  anonymous_access:
    enabled: false
  apikey:
    enabled: true
    allowed_keys: ["<key from a Secret>"]
    users: ["admin"]
env:
  DISABLE_TELEMETRY: "true"

F-04 Qdrant: no API key, reads and writes open

In plain terms: the vector database has no API key by default, so any pod can read, change or delete collections. The chart does run the container as non-root.

apiKey: true            # chart generates a key and stores it in a Secret
readOnlyApiKey: true
config:
  telemetry_disabled: true

F-05 Ollama: no auth feature, bound to 0.0.0.0, runs as root

In plain terms: Ollama has no login feature, listens on all interfaces and runs as root, so any pod can use or manage its models.

podSecurityContext:
  runAsNonRoot: true
  runAsUser: 1000
  fsGroup: 1000
securityContext:
  allowPrivilegeEscalation: false
  capabilities: { drop: ["ALL"] }

plus a NetworkPolicy that admits only the proxy or gateway pods.

F-06 containers/kubernetes-mcp-server: unauthenticated MCP endpoint and Ingress on by default

In plain terms: the MCP endpoint is open and published through an Ingress, but it has no Kubernetes rights yet. It becomes dangerous the day someone grants it a role.

ingress:
  enabled: false
image:
  tag: "0.0.67"
config:
  require_oauth: true   # plus the OAuth provider settings from the project docs

F-07 vLLM production-stack: no API key and root allowed by an explicit setting

In plain terms: once a model is added, the serving stack takes requests with no key, and the chart explicitly allows root.

servingEngineSpec:
  vllmApiKey:
    secretName: vllm-api-key
    secretKey: key
  containerSecurityContext:
    runAsNonRoot: true
routerSpec:
  tag: "<pinned version>"

F-08 Milvus: MinIO placeholder credentials and auth off

In plain terms: the object store behind Milvus uses the well-known password minioadmin, and the Milvus API has no login.

minio:
  accessKey: "<random>"
  secretKey: "<random>"
extraConfigFiles:
  user.yaml: |+
    common:
      security:
        authorizationEnabled: true

F-09 Open WebUI: first sign-up becomes admin; containers run as root

In plain terms: Open WebUI requires a login, but the first person to reach a new install and sign up becomes admin. It also runs as root and ships a documented default Pipelines key.

extraEnvVars:
  - name: ENABLE_SIGNUP
    value: "false"
podSecurityContext:
  runAsNonRoot: true
  runAsUser: 1000
  fsGroup: 1000
openaiApiKeyExistingSecret: "<secret name>"

F-10 Langfuse: open sign-up and telemetry on

In plain terms: anyone who reaches the Langfuse UI can create an account, and usage data is sent to the vendor.

langfuse:
  features:
    telemetryEnabled: false
    signUpDisabled: true

F-11 Cluster-wide Secret read in operator and serving charts

In plain terms: several operators can read every Secret in the cluster. That is often needed for their job, but it makes the operator pod a high-value target.

F-12 Tokens, NetworkPolicy, limits, tags and telemetry across the set

In plain terms: almost every chart leaves Kubernetes defaults in place that give pods an API token and open network reach. None is serious alone; together they turn one weak pod into a path to the others.

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata: { name: default-deny }
spec:
  podSelector: {}
  policyTypes: [Ingress, Egress]

then allow only the callers each tool needs.

F-13 LiteLLM: migration Job writes the Postgres password in plain text, even when the user sets their own

In plain terms: the chart's database migration Job puts the database password in a plain environment variable, so anyone who can read Jobs or Pods can read it, even without Secret access and even after the user sets their own password.

db:
  deployStandalone: false
  useExisting: true
  endpoint: <postgres host>
  database: litellm
  secret:
    name: <existing secret>
    usernameKey: username
    passwordKey: password

8. Per-tool breakdown and hardening values for all 15 charts

Below is a tool-by-tool security assessment and hardening guide for each of the 15 charts tested. Operators can copy and adapt the provided values snippets directly into their deployment configurations.

8.1 vLLM production-stack (vllm/vllm-stack)

vllm:
  apiKey: "<strong-random-api-key>"
  securityContext:
    runAsNonRoot: true
    runAsUser: 10001
    readOnlyRootFilesystem: true
    allowPrivilegeEscalation: false
serviceAccount:
  automountServiceAccountToken: false
networkPolicy:
  enabled: true

8.2 KServe (oci://ghcr.io/kserve/charts/kserve-resources)

rbac:
  secretsReadRestricted: true
networkPolicy:
  enabled: true

8.3 KubeRay / Ray (kuberay/kuberay-operator + kuberay/ray-cluster)

rayCluster:
  head:
    enableInTreeAutoscaling: false
    rayStartParams:
      block: "true"
  securityContext:
    runAsNonRoot: true
    runAsUser: 1000
    allowPrivilegeEscalation: false
networkPolicy:
  enabled: true

8.4 AIBrix (vllm-project/aibrix)

securityContext:
  runAsNonRoot: true
resources:
  limits:
    cpu: "2"
    memory: 4Gi
networkPolicy:
  enabled: true

8.5 Ollama (otwld/ollama)

ollama:
  securityContext:
    runAsNonRoot: true
    runAsUser: 1000
serviceAccount:
  automountServiceAccountToken: false
networkPolicy:
  enabled: true

Note: Because Ollama has no native API key mechanism, place an authenticating reverse proxy (such as Envoy, Traefik, or an OAuth sidecar) in front.

8.6 Open WebUI (open-webui/open-webui)

enableSignup: false
securityContext:
  runAsNonRoot: true
  runAsUser: 1000
serviceAccount:
  automountServiceAccountToken: false
networkPolicy:
  enabled: true

8.7 LocalAI (go-skynet/local-ai)

apiKeys:
  - "<strong-random-api-key>"
securityContext:
  runAsNonRoot: true
  runAsUser: 1000
networkPolicy:
  enabled: true

8.8 LiteLLM (oci://ghcr.io/berriai/litellm-helm)

db:
  deployStandalone: false
  useExisting: true
  endpoint: <postgres-host>
  database: litellm
  secret:
    name: <pre-created-secret>
    usernameKey: username
    passwordKey: password
securityContext:
  runAsNonRoot: true

8.9 Langfuse (langfuse/langfuse)

langfuse:
  signupDisabled: true
  telemetryEnabled: false
securityContext:
  runAsNonRoot: true
  runAsUser: 1001
networkPolicy:
  enabled: true

8.10 n8n (n8n-io/n8n-hosting)

n8n:
  diagnostics:
    enabled: false
serviceAccount:
  automountServiceAccountToken: false
networkPolicy:
  enabled: true

8.11 Qdrant (qdrant/qdrant)

apiKey: true  # Generates a random key into a Secret
telemetry:
  disabled: true
serviceAccount:
  automountServiceAccountToken: false
networkPolicy:
  enabled: true

8.12 Weaviate (weaviate/weaviate)

authentication:
  anonymous_access:
    enabled: false
  apikey:
    enabled: true
    allowed_keys:
      - "<strong-random-key>"
service:
  type: ClusterIP
securityContext:
  runAsNonRoot: true
  runAsUser: 1000
networkPolicy:
  enabled: true

8.13 Milvus (milvus/milvus)

extraConfigFiles:
  user.yaml: |
    common:
      security:
        authorizationEnabled: true
minio:
  rootUser: "<strong-user>"
  rootPassword: "<strong-password>"
networkPolicy:
  enabled: true

8.14 containers/kubernetes-mcp-server (oci://ghcr.io/containers/charts/kubernetes-mcp-server)

ingress:
  enabled: false
oauth:
  enabled: true
networkPolicy:
  enabled: true

8.15 Flux159 mcp-server-kubernetes (Flux159/mcp-server-kubernetes)

security:
  mcpAuthToken: "<strong-random-auth-token>"
rbac:
  clusterWide: false
networkPolicy:
  enabled: true

9. Discussion: Why do AI charts ship insecure defaults?

8.1 Answers to the research questions

8.2 Why the defaults look like this

The defaults follow a consistent logic. Vendors optimise the first install for "it works": no key to generate, no Secret to create, no admission failure because an image expects root. Ray states that it is meant for a trusted network and that authentication is the operator's job [11][12]. Ollama has no auth feature at all. Several charts carry a warning in values.yaml beside the insecure setting. From the vendor's view the choice is documented and reversible.

The problem is the assumption of a trusted network. In Kubernetes the network is shared by every pod unless NetworkPolicy says otherwise, and 14 of 15 charts do not say otherwise. One compromised pod anywhere in the cluster is enough to reach every open API in this study. The documentation sits in files that many operators never open, and the warning does not travel with the running Service.

The charts that did better show the trade-off is not forced. Qdrant and n8n enforce non-root. n8n refuses to render with a placeholder encryption key. Open WebUI and LiteLLM require a login by default. These choices cost the vendor a little first-run friction.

8.3 What this means for operators

Treat every AI chart as needing a values file before first install. The fix for each finding is a few lines (section 7 and section 8). The highest value changes, in order: turn on the tool's auth, or put an authenticating proxy in front of it; add a default-deny NetworkPolicy per namespace; enforce the Pod Security restricted profile [1][2] where the image allows it; set automountServiceAccountToken: false where the pod does not call the API [6]; and treat any MCP server with cluster RBAC as a privileged admin interface.

8.4 What this means for vendors and chart maintainers

Secure defaults do not need to break the first install. A chart can generate a random API key into a Secret and print it in NOTES.txt, as Qdrant already supports with apiKey: true. It can ship a NetworkPolicy that admits only the release's own pods. It can set runAsNonRoot and a non-zero UID when the image supports it. And it can refuse to render an MCP server with cluster RBAC and no auth token, as n8n does for its placeholder key.

10. Limitations and threats to validity

Internal validity (did we measure what happened correctly?)

External validity (does this generalise?)

Construct validity (do the checks measure risk?)

Not tested: image CVEs, auth bypass once auth is on, application logic flaws, supply chain.

11. Ethics and testing scope

Where we tested. All testing ran on a Sorami laptop, against charts installed on a local kind cluster created for the study and deleted afterwards. No third-party, customer or internet-facing system was scanned or contacted. The only outbound traffic was downloading public charts, images and documentation. We did not use real credentials or real data. Writes during probing were limited to creating and deleting one empty object per tool.

What we publish. Documented vendor defaults are published with links to the vendor's own documentation, because the vendor already states the default and the fix. Publishing them tells operators nothing an attacker cannot read in the same values.yaml. For F-06, the chart documents its Ingress default but not its lack of auth; the project docs describe OAuth as opt-in, so we treat it the same way.

Chart bug (F-13). One finding, F-13 in LiteLLM, is a chart bug rather than a documented default. It exposes a database password only to users who can already read Jobs or Pods in the namespace, so we publish it here with the workaround rather than hold it back.

Table 15: Study timeline.

Date Event
2026-09-24 Static pass and live pass completed. F-13 confirmed live.
2026-09-25 Full request and response logs recorded for Ray, Ollama, Qdrant, Weaviate and Open WebUI.

No vendor was contacted before publication.

12. Recommendations for operators, vendors, and scanner authors

Per-tool fixes are in section 7 and section 8. The list below is general and ordered by value for effort.

Operators (teams installing these charts)

  1. Write a values file before the first install. Do not install an AI chart "to try it" in a shared cluster.
  2. Turn on the tool's own auth where it has one (Ray token auth, Qdrant apiKey, Weaviate API keys, vLLM API key, MCP auth token or OAuth). Where it has none (Ollama), put an authenticating proxy in front and admit only the proxy.
  3. Add a default-deny NetworkPolicy to each AI namespace, then allow only known callers [4].
  4. Label AI namespaces for Pod Security Admission restricted, or at least baseline, and fix what it rejects [1][2].
  5. Set automountServiceAccountToken: false on pods that do not call the Kubernetes API [6].
  6. Treat any MCP server or operator with cluster-wide RBAC as a privileged admin tool: namespace-scope it, remove secrets and pods/exec unless needed, and never expose it without auth [3].
  7. Change placeholder credentials before install, pin image tags or digests, and turn off telemetry you have not chosen.
  8. Create the first admin account on tools with first-user-admin flows (Open WebUI, Langfuse, n8n) before exposing the UI.

Vendors and chart maintainers

  1. Generate a random API key into a Secret by default and print how to read it in NOTES.txt.
  2. Refuse to render when a component with cluster-wide RBAC has no auth configured, in the same way n8n refuses a placeholder encryption key.
  3. Ship an optional, on-by-default NetworkPolicy that admits the release's own pods.
  4. Set runAsNonRoot and a non-zero UID when the image supports it, and remove passwordless sudo from images.
  5. Pin image tags to the chart's app version, not latest or nightly.
  6. State the auth default in the chart README, not only in project docs.

Scanner authors

  1. Read pod templates inside common custom resources such as RayCluster.
  2. Add rules for known AI-tool auth settings, for example Weaviate anonymous_access.enabled: true or an empty MCP auth token with cluster RBAC.

13. Frequently asked questions

Why do AI Helm charts default to unauthenticated APIs?

Vendors typically design default Helm charts for quick local evaluation and "one-click" developer trials. Enforcing authentication at install time requires managing Secrets, configuring certificates, or distributing API keys, which introduces onboarding friction. However, in shared or multi-tenant Kubernetes clusters, this assumption of a trusted internal network leaves endpoints open to lateral movement.

Are these findings CVE vulnerabilities?

Most findings documented in this report represent configuration defaults rather than software code vulnerabilities (CVEs). They reflect vendor decisions to prioritize evaluation simplicity and assume a trusted network. The notable exception is F-13 in LiteLLM, where the database migration Job writes the PostgreSQL password in plain text to environment variables, readable by any user or ServiceAccount with Job or Pod read permissions even without Secret access.

Does mounting a ServiceAccount token mean a pod is vulnerable?

No. Mounting a ServiceAccount token is standard default Kubernetes behavior (automountServiceAccountToken: true), not an exploit on its own. The actual risk depends on effective RBAC. If a pod is granted overly permissive RBAC roles (such as cluster-wide Secret read or pod exec, as observed in Flux159 and KubeRay), an attacker who compromises that pod inherits high-impact cluster permissions. Where pods do not need Kubernetes API access, operators should disable token automounting.

Can Kubernetes scanners like Trivy or Checkov catch these issues?

Generic manifest scanners identify infrastructure-level configuration problems (such as running as root, missing resource limits, or missing NetworkPolicies). However, scanners inspect static YAML and do not evaluate application-level semantics: they cannot determine whether an HTTP server requires API authentication or whether an MCP server accepts unauthenticated tool execution. In addition, scanners frequently fail to inspect pods nested inside Custom Resources (such as KubeRay's RayCluster).

What is the quickest way to secure an existing AI deployment?

Apply three immediate measures: 1. NetworkPolicy: Enforce a default-deny NetworkPolicy in the application namespace and whitelist only authorized client pods. 2. Authentication: Turn on the tool's built-in API authentication key or place an authenticating proxy (such as Envoy, Traefik, or an OAuth sidecar) in front of the Service. 3. Restricted Pod Security: Apply the Kubernetes Pod Security restricted standard to enforce non-root execution and drop unnecessary capabilities.

14. Reproducibility: How to verify our results and artefact availability

The static results can be checked without any Sorami code. Table 1 lists every chart with its source and pinned version. Rendering a chart at that version with default values, as in section 5.2 (helm template rel <chart-dir> --namespace sbd [override]), produces the manifest each matrix cell was read from. The file and line references in section 7 point into that output and into the chart's own values.yaml. Floating image tags mean a new install may pull different images for the tools marked in the Tag column.

The live pass can be repeated on a local kind cluster with the helm install, curl, id and kubectl auth can-i commands in section 5.2. Probe only clusters you own.

The underlying evidence is available on request: the results tables (results.csv, manual-checks.tsv, dynamic-results.tsv), the live probe outputs (evidence/dynamic/) and the scanner summaries (evidence/scans/scan-summary.json, evidence/scans/scan-detail.json). Email [email protected] and say which tool or finding you want to check. Appendix A lists what each file holds.

15. Conclusion

We evaluated 15 popular AI charts on Kubernetes exactly as shipped. 10 of 14 tools with an API assume a trusted network and omit native authentication by default, while most charts leave container execution as root and provide no default network policy. Live testing on the 8 charts that started in kind confirmed every static auth result. Under our in-cluster threat model, the most severe attack paths involve remote code execution on Ray, an unauthenticated MCP server with cluster-wide Secret read and pod exec rights (Flux159), and plain-text database credentials embedded in migration Jobs (LiteLLM). General-purpose manifest scanners flagged generic posture gaps but missed the API authentication omissions and CRD-nested workloads behind these attack chains.

Almost all of these configurations are documented vendor defaults designed for rapid developer trials. Because a shared Kubernetes cluster is not a trusted network, operators should treat every AI chart as requiring hardening values before deployment. Turning on authentication, enforcing non-root execution, setting automountServiceAccountToken to false, and applying default-deny network policies takes only a few lines of configuration and eliminates the lateral movement paths identified in this study.

16. References

[1] Kubernetes. Pod Security Standards. https://kubernetes.io/docs/concepts/security/pod-security-standards/

[2] Kubernetes. Pod Security Admission. https://kubernetes.io/docs/concepts/security/pod-security-admission/

[3] Kubernetes. Role Based Access Control Good Practices. https://kubernetes.io/docs/concepts/security/rbac-good-practices/

[4] Kubernetes. Network Policies. https://kubernetes.io/docs/concepts/services-networking/network-policies/

[5] Kubernetes. Security Checklist. https://kubernetes.io/docs/concepts/security/security-checklist/

[6] Kubernetes. Configure Service Accounts for Pods. https://kubernetes.io/docs/tasks/configure-pod-container/configure-service-account/

[7] Center for Internet Security. CIS Kubernetes Benchmarks. https://www.cisecurity.org/benchmark/kubernetes

[8] NSA and CISA. Kubernetes Hardening Guide (Cybersecurity Technical Report, updated 2022). https://www.cisa.gov/news-events/alerts/2022/03/15/updated-kubernetes-hardening-guide

[9] OWASP Gen AI Security Project. OWASP Top 10 for LLM Applications 2025. https://genai.owasp.org/llm-top-10/

[10] Model Context Protocol. Specification 2025-03-26: Authorization and Transports. https://modelcontextprotocol.io/specification/2025-03-26/basic/authorization

[11] Oligo Security (26 March 2024). ShadowRay: First Known Attack Campaign Targeting AI Workloads Exploited In The Wild. https://www.oligo.security/blog/shadowray-attack-ai-workloads-actively-exploited-in-the-wild

[12] NIST National Vulnerability Database. CVE-2023-48022 (disputed). https://nvd.nist.gov/vuln/detail/CVE-2023-48022

[13] Wiz Research (2024). Probllama: Ollama Remote Code Execution Vulnerability (CVE-2024-37032). https://www.wiz.io/blog/probllama-ollama-vulnerability-cve-2024-37032

[14] Cisco (1 September 2025). Detecting Exposed LLM Servers: Shodan Case Study on Ollama. https://blogs.cisco.com/security/detecting-exposed-llm-servers-shodan-case-study-on-ollama

[15] Kubescape. https://kubescape.io/

[16] Checkov. https://www.checkov.io/

[17] kube-linter. https://docs.kubelinter.io/

[18] Trivy. https://trivy.dev/

[19] FIRST. Common Vulnerability Scoring System v4.0. https://www.first.org/cvss/v4-0/

[20] kind (Kubernetes in Docker). https://kind.sigs.k8s.io/

Vendor documentation cited in section 7 is listed with its HTTP status on 24 September 2026 in evidence/doc-urls.tsv. All reference URLs above were checked on 25 September 2026.

17. Appendices

Appendix A: Raw data index

Table 16: Evidence files behind this report. Section 14 lists the ones available on request.

File Contents
results.csv One row per tool, one column per check, with evidence columns and dynamic columns. Source of every matrix cell.
tools.tsv Tool list, chart source, versions, GitHub stars, render overrides.
manual-checks.tsv Hand-checked auth and telemetry defaults with citations.
dynamic-results.tsv Live pass status, auth result, runtime user and RBAC per tool.
evidence/totals.json Matrix, totals, live totals, scanner sums.
evidence/environment.txt Host, Docker, kind, Kubernetes and scanner versions.
evidence/doc-urls.tsv Vendor documentation URLs cited, with HTTP status on 24 September 2026.
evidence/rendered/*.yaml Default manifests as rendered. *.err are the two render refusals.
evidence/values/* Chart values.yaml, NOTES and README files at the pinned versions, used for file:line citations.
evidence/scans/raw-scans.tar.gz Raw Kubescape, Checkov, kube-linter and Trivy JSON for all renders.
evidence/scans/scan-summary.json Per-render scanner counts (used in results.csv).
evidence/scans/scan-detail.json Per-tool failed checks by severity and top IDs (section 6.2).
evidence/scans/run.log Scan run log.
evidence/dynamic/*-probe.txt Live HTTP probe output per tool.
evidence/dynamic/*-probe-full.txt Ray, Ollama, Qdrant, Weaviate and Open WebUI: UTC timestamp, full curl command, method, URL, request body, status, response headers and body for every request.
evidence/dynamic/*-can-i*.txt kubectl auth can-i --list and spot checks for Flux159, kmcp and KubeRay.
evidence/dynamic/uid.txt id output for Qdrant and Weaviate.
evidence/dynamic/prepull.tsv Image pre-pull results and times.
evidence/dynamic/skipped.txt Reasons for charts not installed.
figures/*.png Heatmap, scanner bar chart, auth chart.

Full static and live commands are in section 5.2.

Appendix B: Glossary

Table 17: Terms used in this report.

Term Meaning
Helm chart A package of Kubernetes manifests with a values.yaml file of settings.
Default values The settings in the chart's own values.yaml, used when the installer changes nothing.
kind "Kubernetes in Docker": a local cluster that runs in containers on one machine [20].
ServiceAccount token A credential Kubernetes mounts into a pod so it can call the Kubernetes API as that ServiceAccount.
ClusterRole An RBAC role that applies across all namespaces.
NetworkPolicy A Kubernetes object that limits which pods can talk to which. With none, all traffic is allowed.
Pod Security Admission (PSA) A built-in admission controller that enforces the Pod Security Standards per namespace.
MCP Model Context Protocol: a protocol that lets an AI agent call tools, here tools that act on a Kubernetes cluster.
LoadBalancer Service A Service type that asks the cloud provider for an external IP address.
uid 0 The root user inside a container.
Floating tag An image tag such as latest that can point to different images over time.

Sorami Consulting Pty Ltd. sorami.com.au/research/

Last reviewed:
